• 24″ Vortex blade for higher rates or 24″ 13 wave blade for lower rates and less soil disturbance
• 24″ blades run 8″ deep
• Mounts on 4″ x 4″, 4″ x 6″, 6″ x 6″, or 7″ x 7″ bar
• 30″ or 24″ spacing
• Optional adapter bracket to bolt to single bar
• Independent coulters with adjustable down pressure springs.  Can increase down pressure on any row that runs in a wheel track.
• Bolt in hub/spindle for opening coulter
• Opening coulter runs straight

• Hose fits inside manure tube
• Manure tube has diffuser to direct manure flow into coulter furrow
• Heavy duty twin 18″ notched concave closing wheels with adjustable pitch as well as in and out for slow and faster ground speeds
• NEW FOR 2021: 3/4″ mounting bolts for closing wheel L brackets, bolt on hub/spindle assy with much larger bearings for closing wheels, closing wheels also lock up
• 15,000-20,000 GPA is not a problem with these units
• Tank and dragline set up

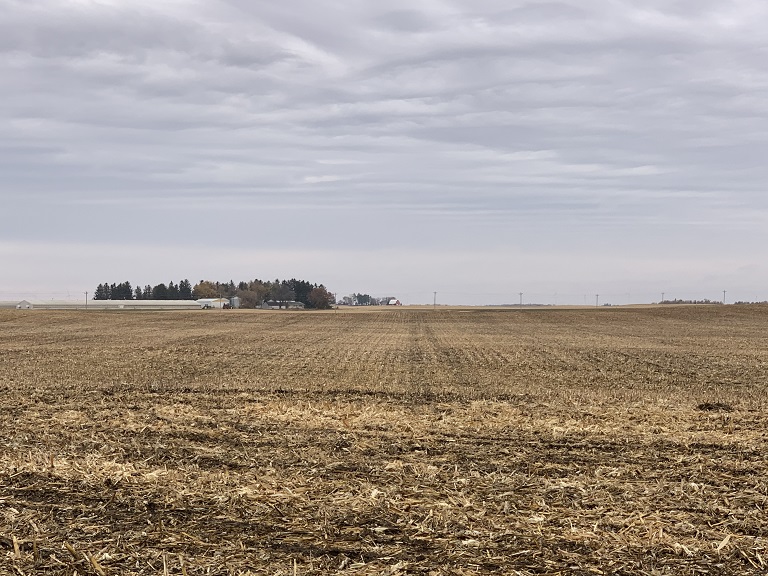

Corn Field Applied with Dragline and Cyclone Row Units

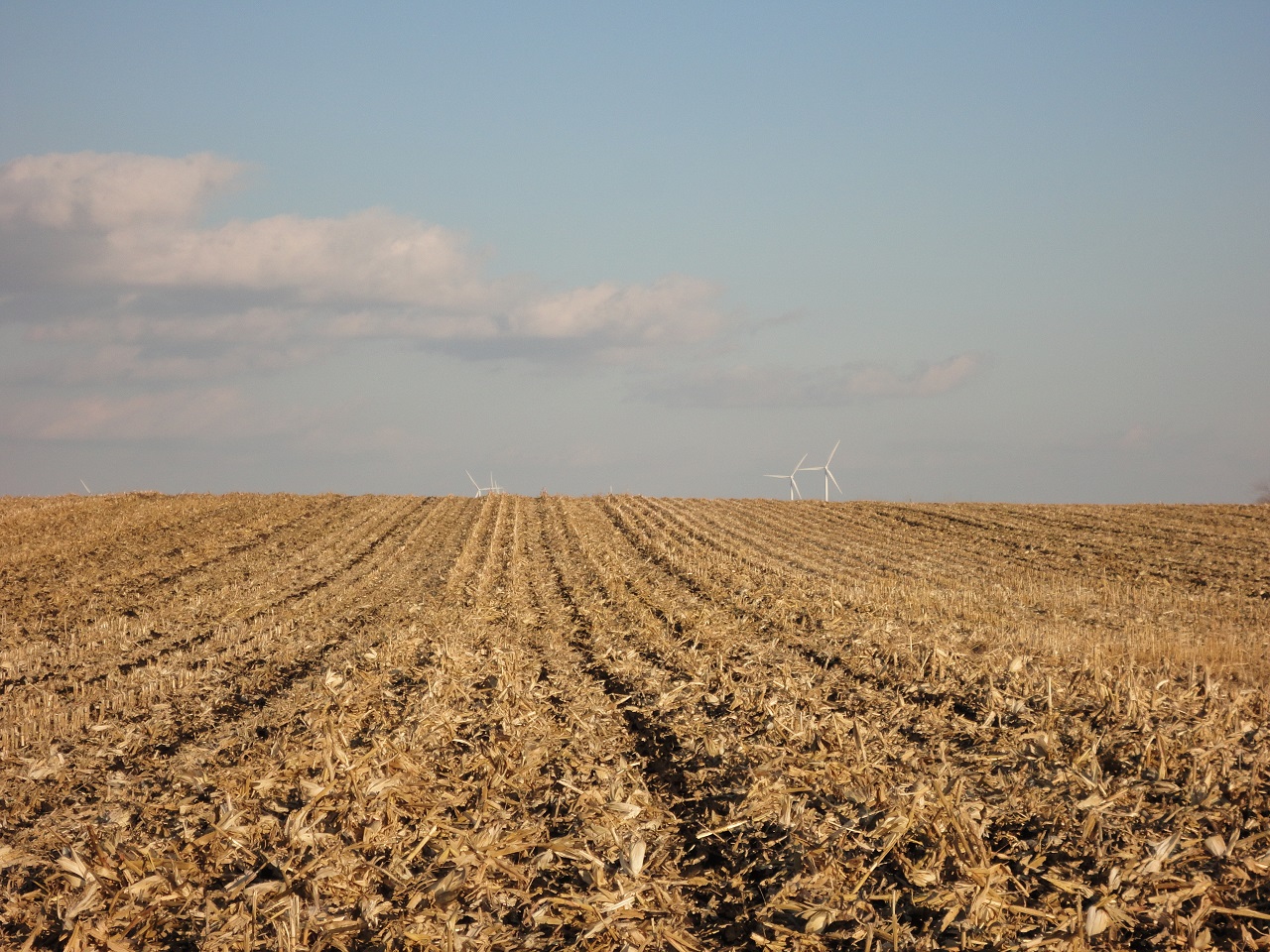

Corn Stalks Applied with the Cyclone Injector

14,000 GPA

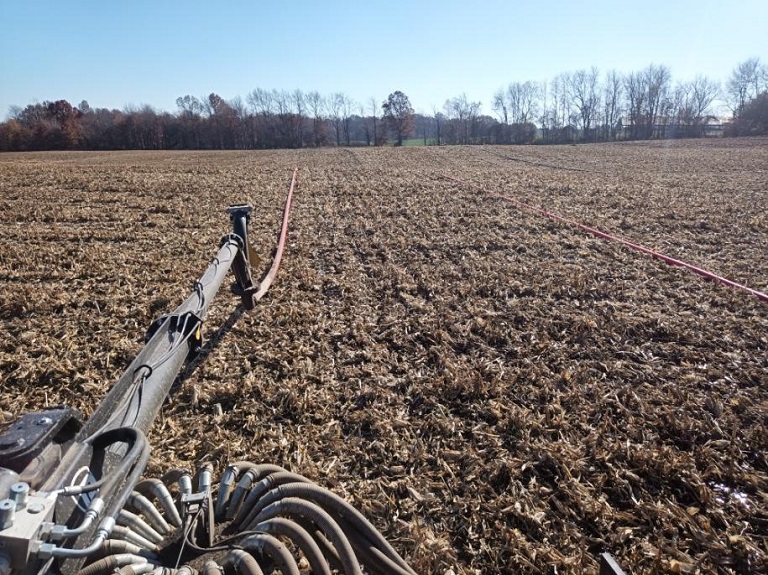

20,000 GPA

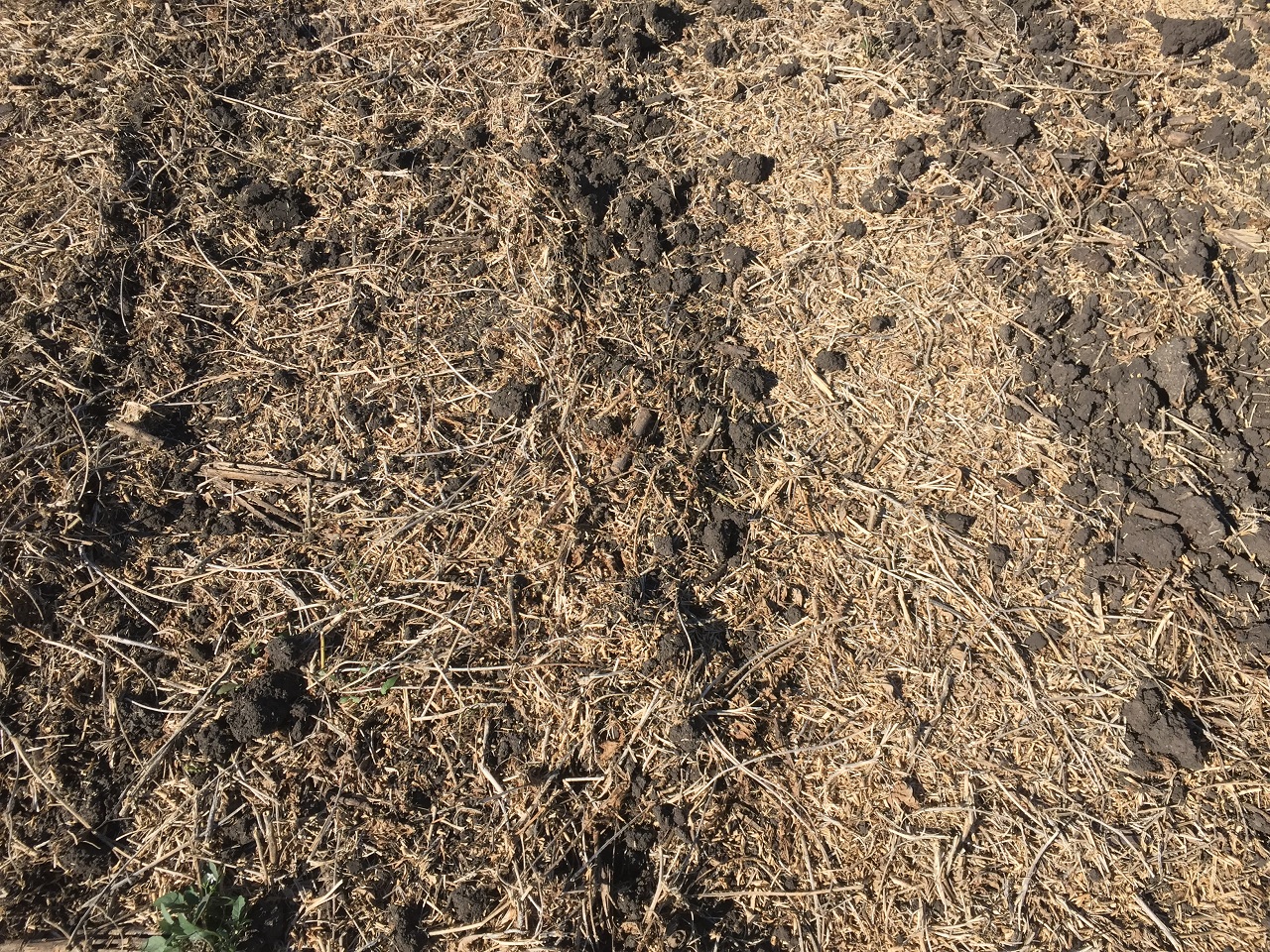

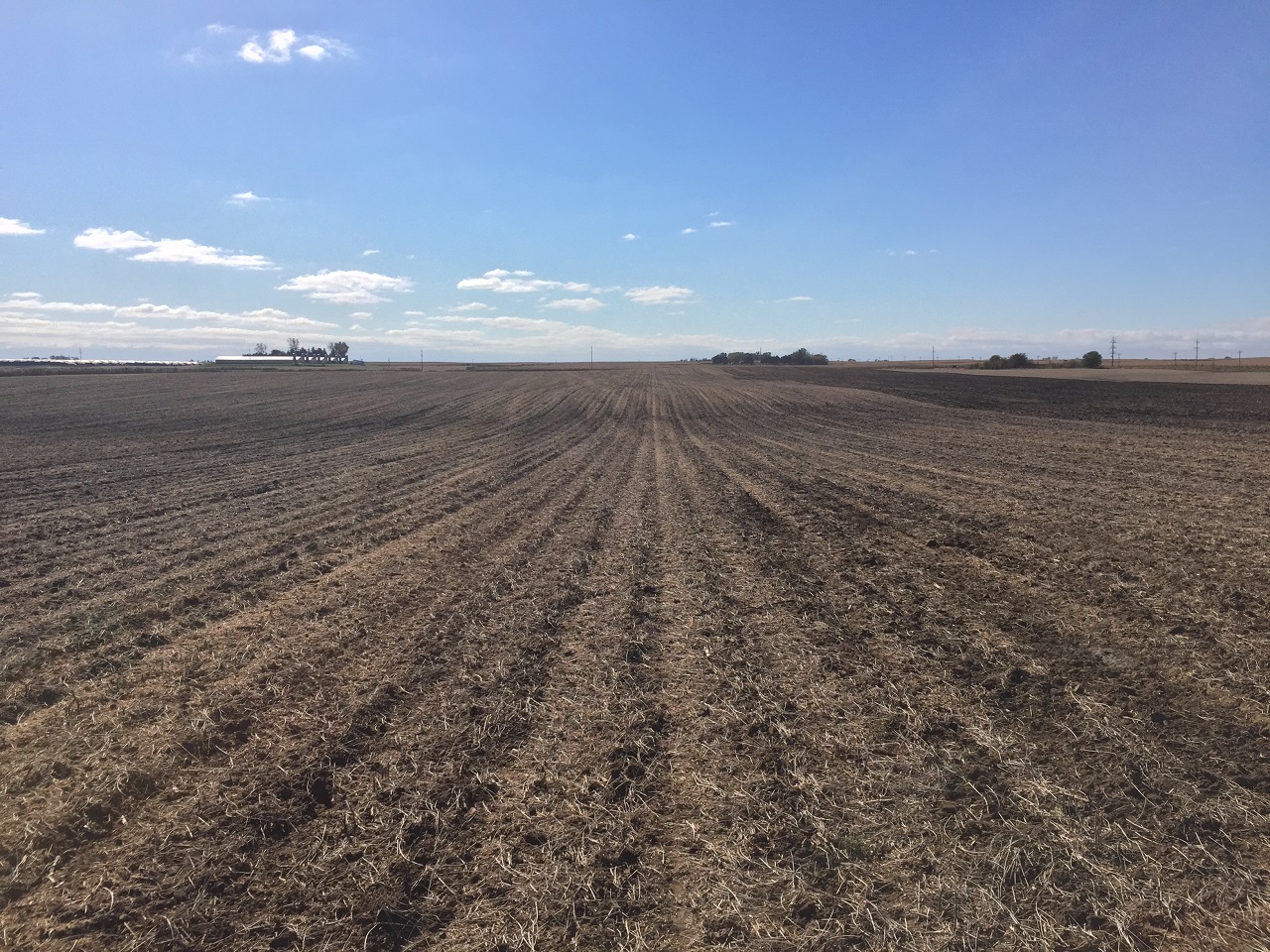

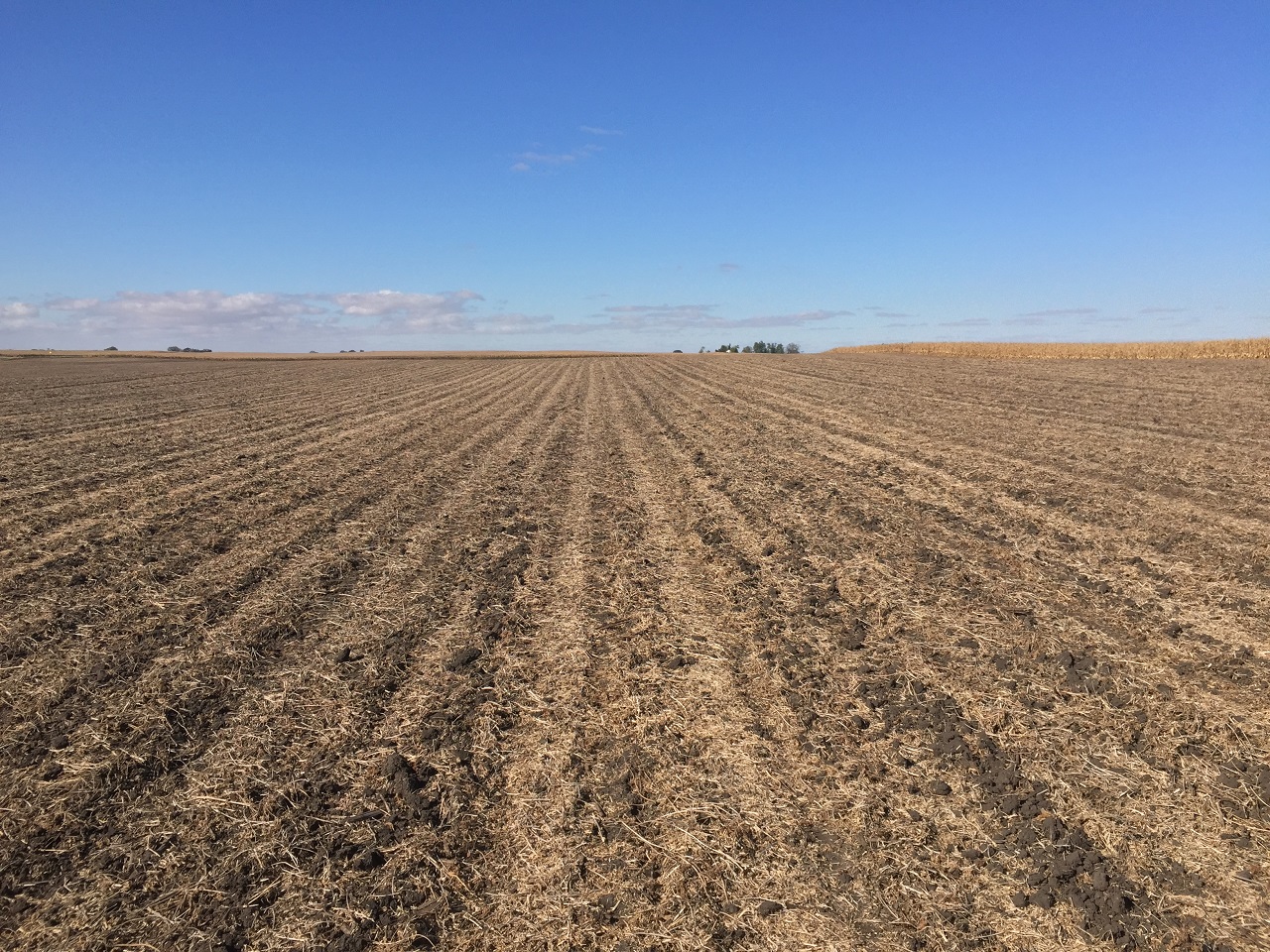

Soybean Stubble

Soybean Stubble

Soybean Stubble

Cover Crop

Cover crop applied in NW Iowa with The Cyclone No-Till Injector

Watch the Cyclone Unit in Action
